BAR TECHNOLOGIES PRODUCE

THE STRAIGHTESTTHE ROUNDESTMOST ACCURATE COLD-FINISHED STEEL BARS

border for stelmi new

Close Enough is NOT good enough for us, our steel bars have to be as perfect-as-possible

border for stelmi new 2

OUR PRODUCTS

HOW WE DO IT

initial operations
RIGHT SLIDER DOTS

RAW MATERIALS

Bar Technologies maintains an inventory of steel bars and tubing in all sizes and chemistry's. In addition, our working relationships with a range of steel producers allow us to purchase only the highest quality products and quickly fill customer orders with unique specifications

pre-straightening
RIGHT SLIDER DOTS

PRE STRAIGHTENING

Pre straightening enhances dimensional accuracy in the center less turning operation.

chamfer
RIGHT SLIDER DOTS

TRIM / CHAMFERING

Saw-cutting and chamfering both ends of each bar helps it go through turning and grinding operations with minimal tool wear, contributing to productivity

turning
RIGHT SLIDER DOTS

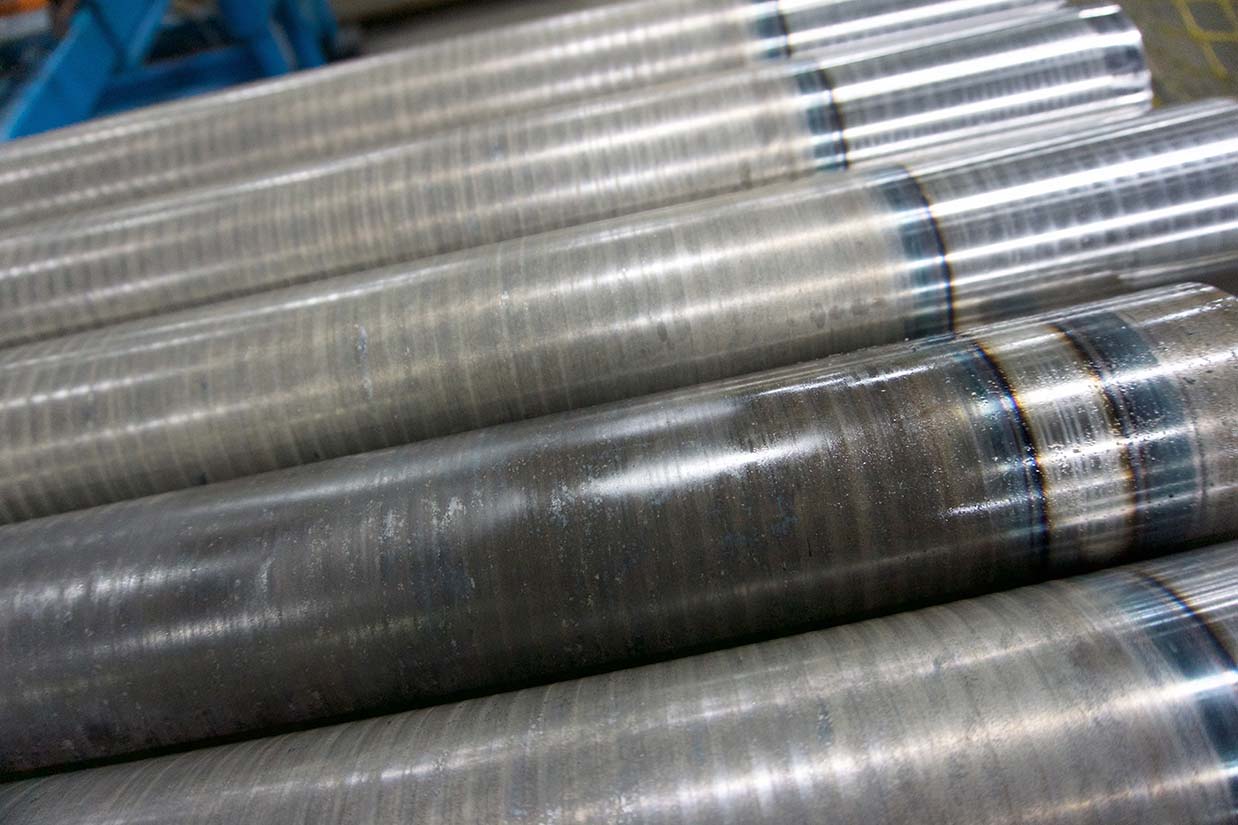

TURNING

Pre-straightened bars pass through a precision centerless turning head that rotates at high speeds, removing surface imperfections, and leaving bars uniformly round within very close tolerances. A laser constantly measures diameter. Its feedback instantly adjusts the cutting head to ensure consistent size control. Information on the way each steel chemistry and physical property reacts to each step is added to the computer database and stored so it can be used to process future orders efficiently. Consistency in turning sets up the rest of the process.

finish straightening
RIGHT SLIDER DOTS

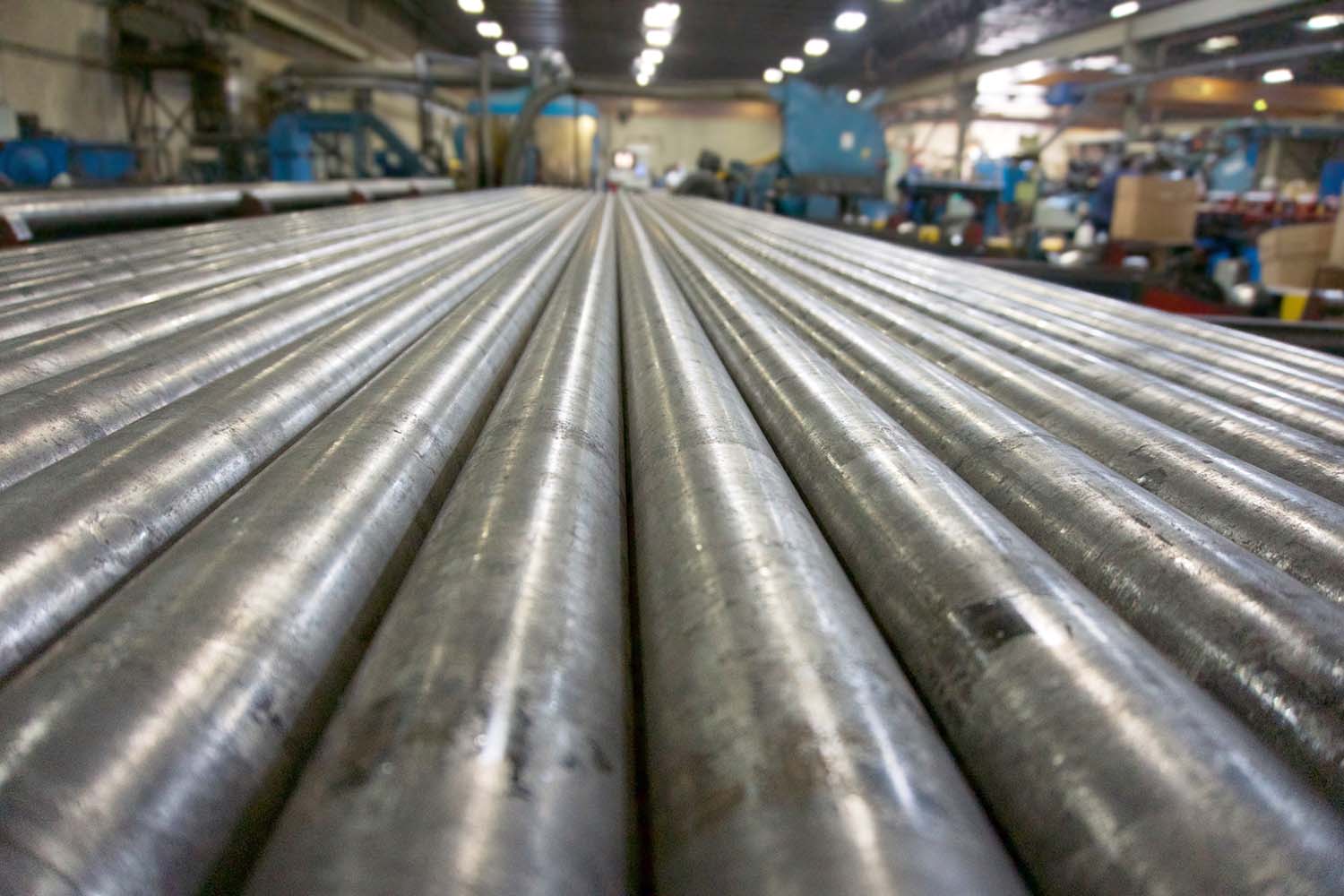

STRAIGHTENING

Real-time computer control of roll speed and roll pressure during straightening yields bars up to 6.00” (150MM) in diameter that vary less than .0003” / foot. Straightness is validated with dial indicators while roundness is authenticated with special gauges that go well beyond ordinary micrometers used by other processors. A laser monitors changes in the bar’s diameter resulting from finish straightening, with its readings fed back to the turning operation. Each bar’s dimensions, straightness, and roundness are monitored throughout the process, optimizing the efficiency of grinding and verifying the incremental value of quality added at every stage of production.

cetnerless grinding
RIGHT SLIDER DOTS

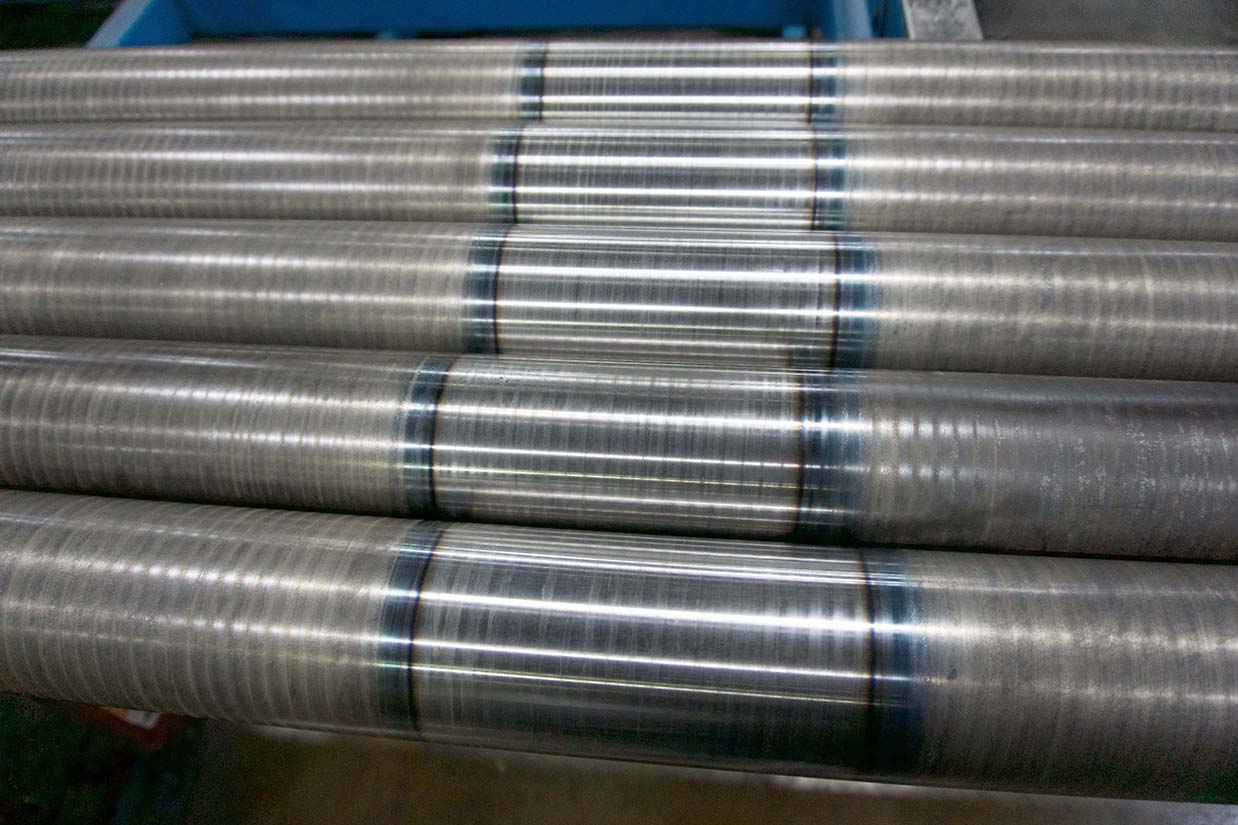

GRINDING

Laser measuring systems ensure precise dimensional control during Bar Technologies’ precision centerless grinding process. Proprietary grinding wheel configurations simultaneously size bars and tubes and polish them to a consistent microfinish of 25 RA or better. Size control capabilities are unique. Feedback from the laser adjusts computer controlled compensating systems which have been pre-set to customer specifications . Each customer’s requirements are stored so their jobs can be set up quickly and accurately.

finished process icons
RIGHT SLIDER DOTS

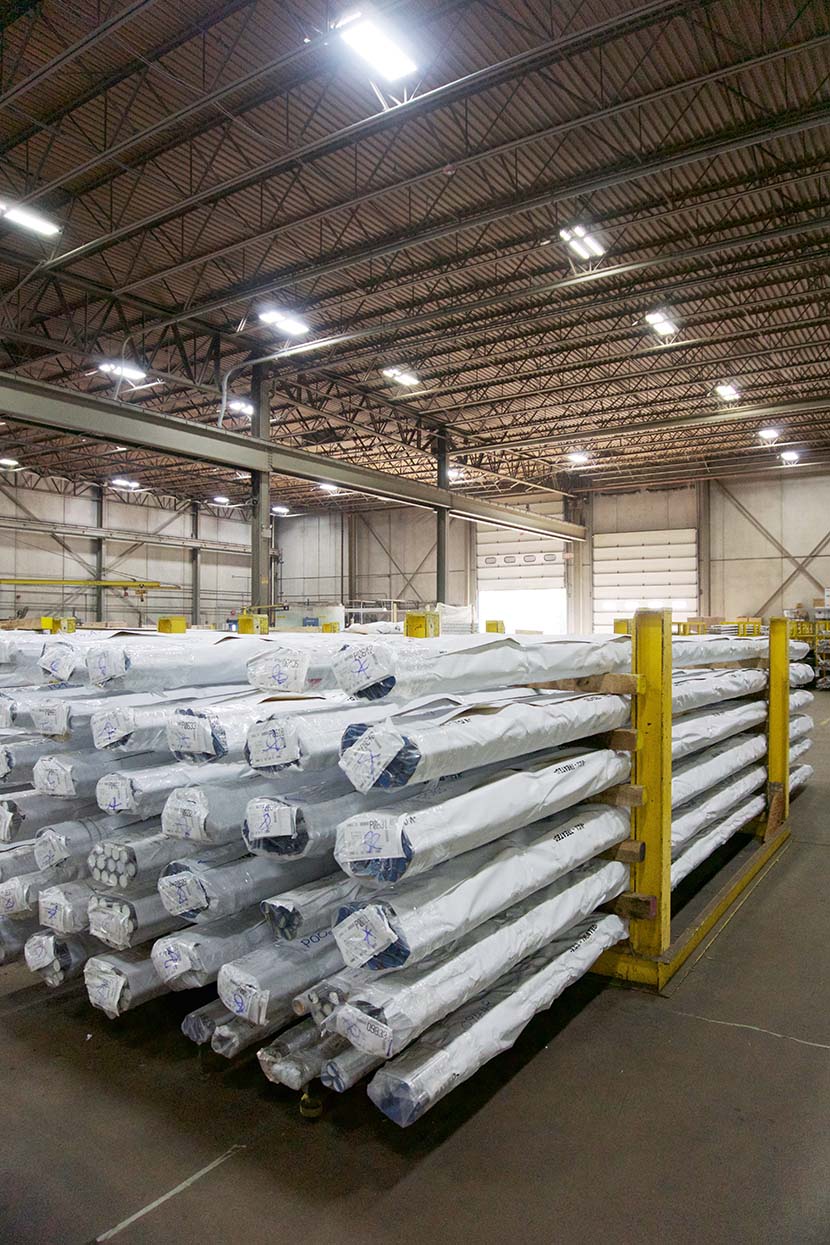

FINISHED PRODUCTS

Bar Technologies maintains stocks of high-end special bar quality (SBQ) cold finished bars and tubing, ready to meet customer needs. Using customized computer software, Bar Technologies service representatives anticipate production requirements, ensuring just in time delivery. Depth of inventory allows a prompt response to unexpected orders.

INDUSTRIES WE SERVE

DOTS
Oil icon

OIL & GAS

transportation icon

TRANSPORT

mining icon

MINING

material handling icon

MATERIAL HANDLING

farming icon

FARMING

Construction Icon

CONSTRUCTION
